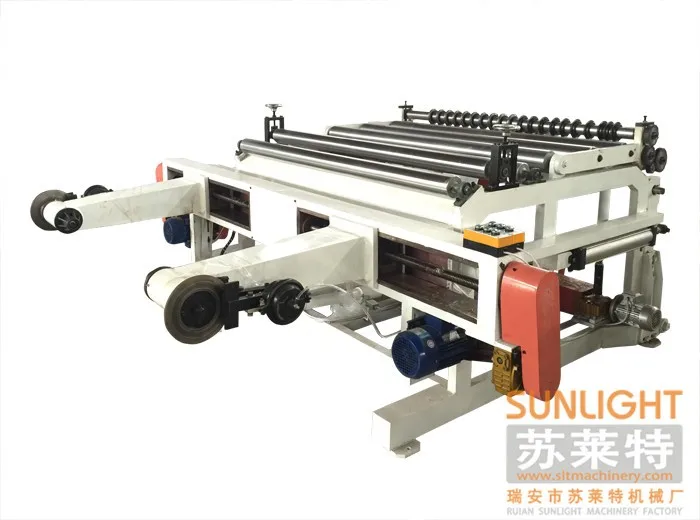

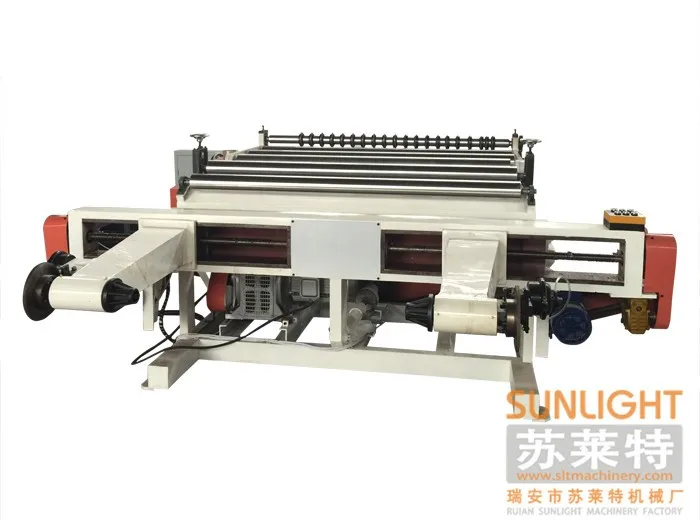

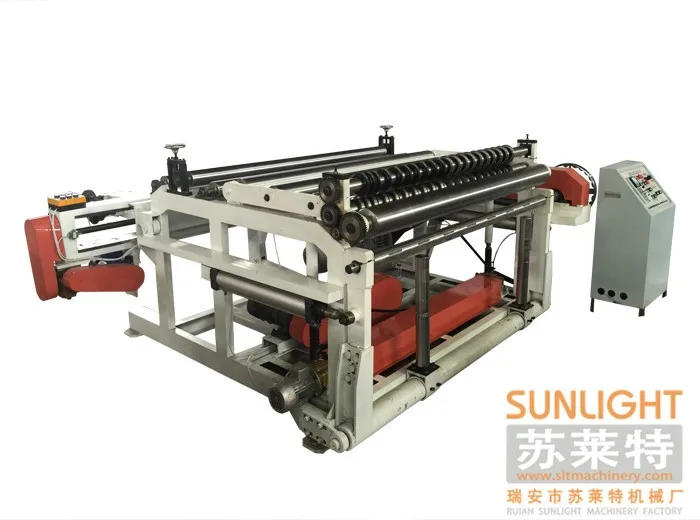

Kraft Paper Jumbo Roll Slitting And Rewinding Machine

FOB Reference Price:Get Latest Price
US $6,200-85,000 / Sets | 1 Set/Sets SLT-SD Kraft Paper Jumbo Roll Slitting And Rewinding Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Condition:
New
Application:
Machinery & Hardware
Packaging Type:
Cans
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V50HZ, 380V50HZ
Power:
12KW
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SUNLIGHT
Model Number:
SLT-SD
Weight:
3100KGS
Dimension(L*W*H):
2900*3300*1250mm
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Slitting Type:
circular knife
Material:
Paper
Function:
Converter
Control System:
PLC
Motor Control:
Inverter
Slitting speed:
250m/min
Tension control:
Frequency motor
Operator:
1 person
Model:
SLT-SD
SupplyAbility
SupplyAbility:
30 Set/Sets per Month SLT-SD Kraft Paper Jumbo Roll Slitting And Rewinding Machine
Packaging & Delivery
Packaging Details
SLT-SD Kraft Paper Jumbo Roll Slitting And Rewinding Machine will be packed by film in standard.Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing
Port
NINGBO
Lead Time :
25 Days after receive your deposit
Product Description


Paper slitter and rewinder is to slit and rewind the big paper roll to the small paper roll. This is a complete set with paper core production line. This machine is high precision, high speed and nice flatness in rewinding.
Feature:

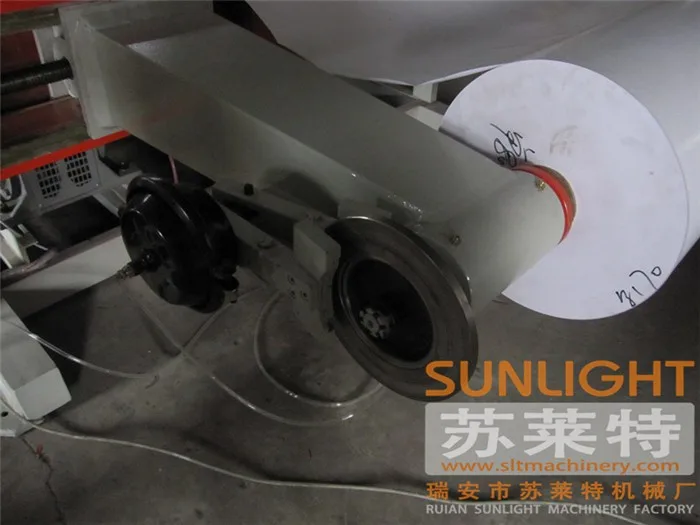

1.Motor lift paper roll shelves without axle, easy operation and shortcut to load raw material.
2.Electronic control the hydraulic pressure to correct an error, so high precision.
3.Suspend type tension system, can keep the tension invariableness .
4. Heavy slitting component, more quality in splitting.


Material Of Paper:
Kraft paper, textile spool paper,
art post paperboard, etc
Kraft paper, textile spool paper,
Thickness
60-600gsm
Unwind Width:
600mm - 1600mm
Unwind Diameter:
1200mm (Max.)
Rewind Diameter:
1200mm(Max.)
Rewind Mini Width:
40mm(Min.)
Slitting Speed:
250m/min
Speed Regulation:
Regulation motor
Loading Way:
Shaft less loading
Clamping Way:
clamping automatically by motor
Rewinding Shaft
Air shaft
Discharging Way:
By pneumatic
Voltage
380V50HZ
Size
Overall Dimension:
2900*3300*1250mm
Weight
3100KGS
Main Parts
Base Paper Chuck:
3inches 1Pair
Discharging Pneumatic Cylinder:
2 sets
Material Shafts Braking Device:
2 sets
Material Lifting Device:
1 set
Material Clamping Device:
2 sets
Independent Electric Operating Box:
1 set
Blade:
20 groups
Control System
Main Motor:
CHINA DEDONG 7.5KW*1
Lifting Motor:
CHINA XINLING 1.5KW*1
Clamping Motor:
CHINA XINGLING1.5KW*1
Working Air Pressure:
0.6Mpa
Signal Component
CHINA HUGONG
Pneumatic Component:
CHINA XINGCHEN
Electrical Equipment:
DELIXI
Bearing
CHINA HAERBING
Knife Holder Lift Type
By motor
Spare Parts And Professional Tools
Allen Wrench:
1 piece
Open-End Wrench:
1 piece
Useful Tools:
1 set
Air Gun:
1 piece
Blade:
3 pieces
Three-Way Connection:
1 piece
Air Tube:
8 meters
Limit Switch:
1 piece
Detailed Images

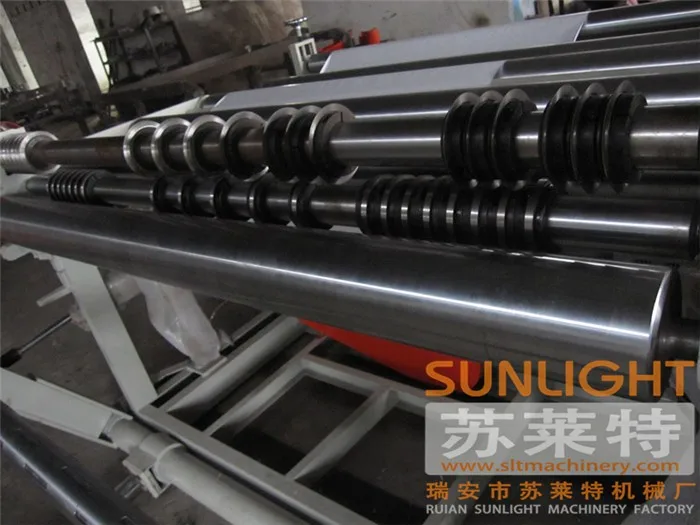

Circular Knife




Certifications

Paper Tube Machine

Slitting Machine

Film Blowing Machine

Our Company

SUNLIGHT Machinery Factory committed to provide the best solutions and share the most advanced products and technologies to our customers. The company has strong capabilities who with a modern production plant. It specializes in producing paper tube machine line , plastic and non-woven shoe cover making machines, various materials slitting machines, sleeve cover making machines, strip cap making machines, automobile steering wheel making machines, etc.,our machines are exported to Europe, North American, South America, Africa, Middle East, Southeast Asia and other countries and regions.

Our Client

SUNLIGHT machinery Factory using the advanced technology, scientific management and the full range after-sales services system. Let’s “strengthen the quality of edge and speed up scientific and technological innovation” as the strategic position. Let’s “serves our customers, returning back to community” as responsibility, using modern enterprise system of scientific management. Continue to improve produce technology, strict to controlled the quality of the products and imports the advanced technological and scientific researching person to provide the products and services to our customers. We will sharing the scientific technological progress to our customers and bringing a sense of accomplishment and pride to enterprises!

Packing & Delivery
Testing And Packing

We testing every machine before shipment
The machine will be packed and shipped by container
It is ok by train or sea
The machine will be packed by film in standard
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing

Payment & Delivery

 We accept L/C, T/T(30% down payment, 70% before shipment).
Inform sea shipment charge advance.
A shipping notification with tracking number will be inform you once your order shipped.
Pls note that we are not responsible for any customs duty incurred at foreign customs.
30-35days after payment/deposit, subject to the machine

Our Services

Service:

1.R&D team: gathered professional electrical engineer team, development any machine you fit your requirement.
2.Raw material inspection: All material test high quality, then keep in warehouse
3.Workers: All workers training 3 months, skilled workers on produce line.
4.Quality Control: We have strict quality control system Incoming Quality Control, Final quality control, Out-going quality control
