Quick Details

  • Type: Other
  • Condition: New
  • Application: Machinery & Hardware
  • Packaging Type: Cans
  • Packaging Material: Plastic
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 380V, 380V, 3PHASE ,50HZ ,Or According Client Requirement
  • Power: 3KW
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SUNLIGHT
  • Model Number: SLT-SE
  • Weight: 600kg
  • Dimension(L*W*H): 1.6(L)x0.9(W)x1.3(H)(m)
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Slitting Type: circular knife
  • Material: Paper
  • Function: Converter
  • Control System: PLC
  • Motor Control: Inverter
  • Slitting speed: 80m/min
  • Tension control: Frequency motor
  • Operator: 1 person
  • Model: SLT-SE

Packaging & Delivery

Packaging Details: SLT-SE Kraft Paper Jumbo Roll Slitting Rewinding Machinewill be packed by film in standard.Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing
Delivery Detail: 25 Days after receive your deposit
Product Description

Use :
Paper slitter and rewinder is to slit and rewind the big paper roll to the small paper roll. This is a complete set with paper core production line. This machine is high precision, high speed and nice flatness in rewinding.
Feature:
1. Pneumatic pressure paper shelves without axle, easy operation and shortcut to load raw material.
2.Electronic control the hydraulic pressure to correct an error, so high precision.
3.Suspend type tension system ,can keep the tension invariableness
4.Heavy slitting component, more quality in splitting.
5.Frequency conversion control synchronization drive low noise.
6.Adopt new techniques, rewinding no conglutination, assurance the distance between two paper roll is 1-2mm.
7.Single unit rewinding, low center of gravity, unload paper roll more convenient.

Material
Kraft paper, textile spool paper, art post paperboard, etc
Material Thickness
40-600gsm
Unwind Width
600mm - 1600mm
Unwind Diameter
1200mm(Max)
Rewind Diameter
1200mm (Max)
Mini Slitting Width
35mm(Min.)
Speed
0-300m/min
Speed Adjustment
By Inverter control
Loading Type
Shaft less and Pneumatic lift material
Discharge Type
Pneumatic
Voltage
380V , 3Phase , 50HZ
Dimension
3900*1200*1200mm (Unwinder Unit)
3050*1600*1100mm (Rewinder unit)
Weight
3200KGS
Main Parts
Clamp Material Head
76mm 1 set
Lifting Material Pneumatic Cylinder
2 set
Discharge Pneumatic Cylinder
2 set
Material Shafts Braking Device
2 sets
Blades
20 groups
Independent Electric Operating Box
1 set
Curved Roll
Yes
Control System
Main Motor
CHINA XINLING 15 KW
Inverter
CHINA ZHENGXIAN 18.5KW
Clamp Motor
CHINA XINLING 1.2kw*2
Signal Component
CHINA HUGONG
Pneumatic Component:
CHINA XINGCHEN
Electrical Equipment:
CHINA CHINT
Bearing
CHINA HAERBING
Spare Parts And Professional Tools
Allen Wrench:
1 piece
Open-End Wrench:
1 piece
Useful Tools:
1 set
Air Gun:
1 piece
Blade:
3 pieces
Three-Way Connection:
1 piece
Air Tube:
8 meters
Limit Switch:
1 piece

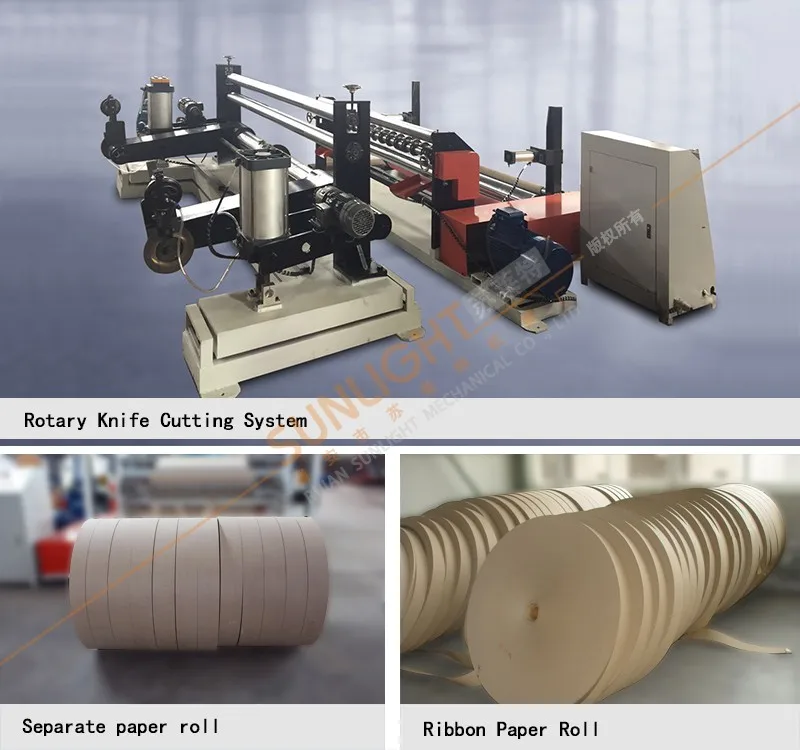

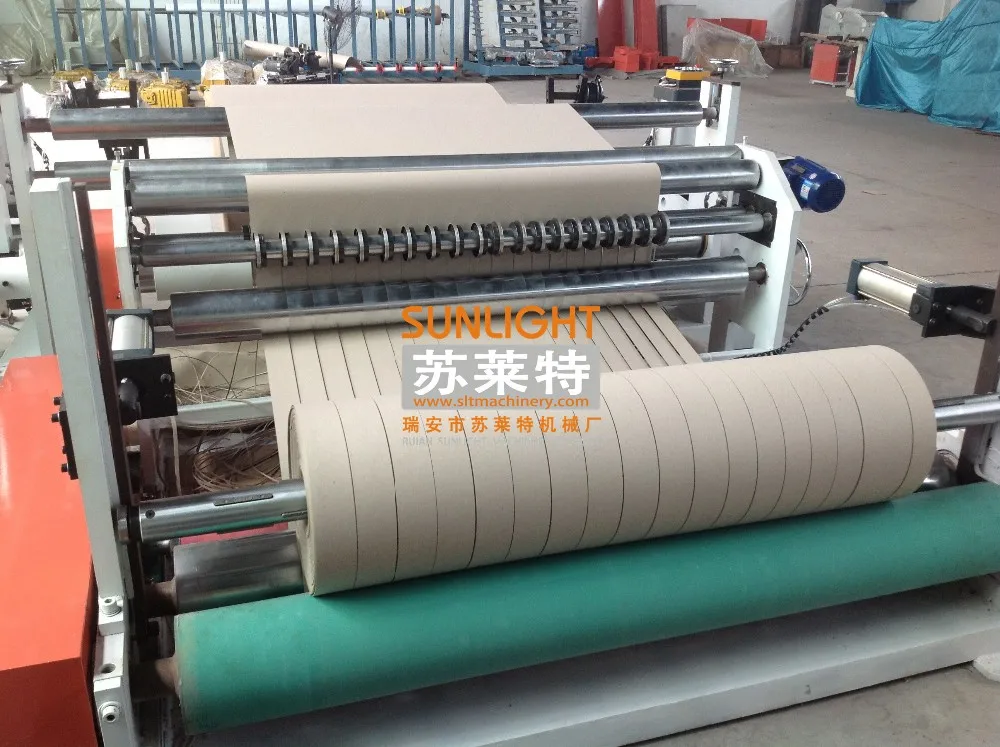

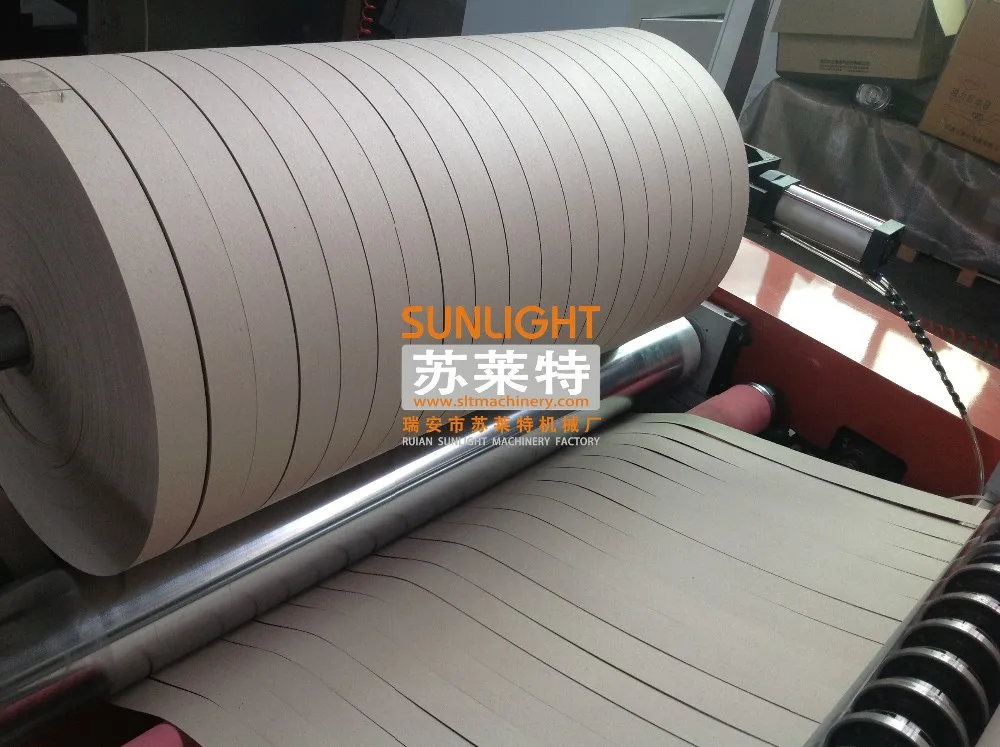

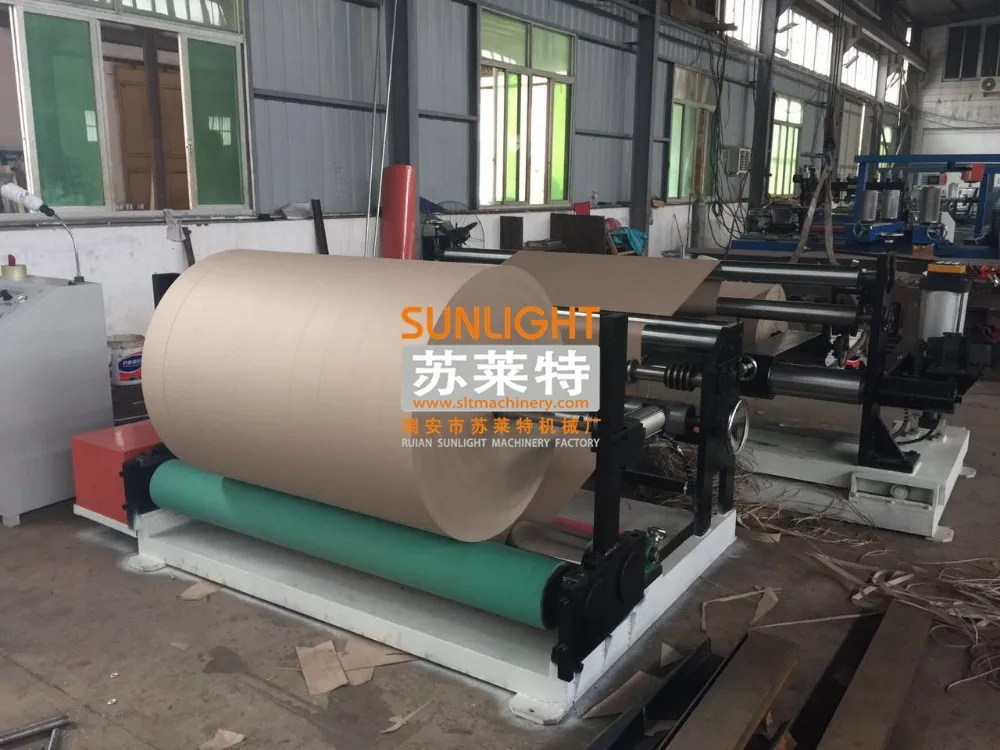

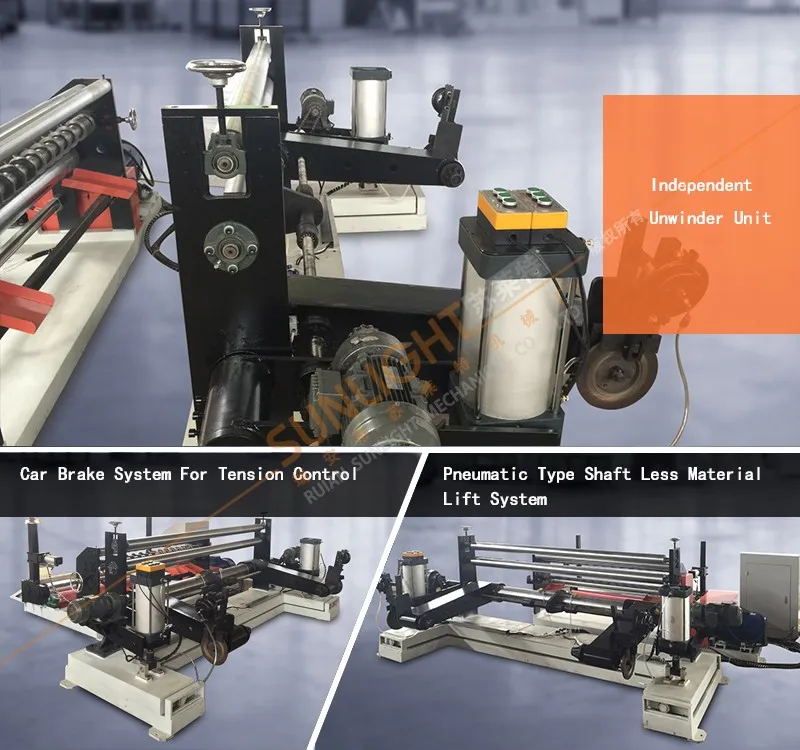

Detailed Images







Certifications

Paper Tube Machine

Slitting Machine

Film Blowing Machine

Our Company

SUNLIGHT Machinery Factory committed to provide the best solutions and share the most advanced products and technologies to our customers. The company has strong capabilities who with a modern production plant. It specializes in producing paper tube machine line , plastic and non-woven shoe cover making machines, various materials slitting machines, sleeve cover making machines, strip cap making machines, automobile steering wheel making machines, etc.,our machines are exported to Europe, North American, South America, Africa, Middle East, Southeast Asia and other countries and regions.

Our Client

SUNLIGHT machinery Factory using the advanced technology, scientific management and the full range after-sales services system. Let’s “strengthen the quality of edge and speed up scientific and technological innovation” as the strategic position. Let’s “serves our customers, returning back to community” as responsibility, using modern enterprise system of scientific management. Continue to improve produce technology, strict to controlled the quality of the products and imports the advanced technological and scientific researching person to provide the products and services to our customers. We will sharing the scientific technological progress to our customers and bringing a sense of accomplishment and pride to enterprises!

Packing & Delivery
Testing And Packing

We testing every machine before shipment
The machine will be packed and shipped by container
It is ok by train or sea
The machine will be packed by film in standard
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing

Payment & Delivery

 We accept L/C, T/T(30% down payment, 70% before shipment).
Inform sea shipment charge advance.
A shipping notification with tracking number will be inform you once your order shipped.
Pls note that we are not responsible for any customs duty incurred at foreign customs.
30-35days after payment/deposit, subject to the machine

Our Services

Service:

1.R&D team: gathered professional electrical engineer team, development any machine you fit your requirement.
2.Raw material inspection: All material test high quality, then keep in warehouse
3.Workers: All workers training 3 months, skilled workers on produce line.
4.Quality Control: We have strict quality control system Incoming Quality Control, Final quality control, Out-going quality control
