Quick Details

  • Condition: New
  • Product Type: Paper Core Machine
  • Processing Type: Cutting Machine
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SUNLIGHT
  • Model Number: SLQG-M
  • Voltage: 380v, 3phase, 60hz
  • Power(W): 5kw
  • Dimension(L*W*H): 2800x980x1200
  • Weight: 850kg
  • Certification: CE
  • Warranty: One Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: White and blue
  • type: Paper core
  • Model name: Paper tube machine
  • Material: paper
  • Application: Tube
  • Design: Single
  • Control System: Inverter
  • Structure: Steel
  • Steel: 14mm
  • Machinery: Paper

Packaging & Delivery

Packaging Details SLQG-M Multi-Knife Paper Tube Cutting Machine will be packed by film in standard
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing
Delivery Time Shipped in 35 days after payment
Product Description

Feature :

1.It is used for cutting paper tube
2. Paper tube cutter adopts pneumatic system for control cutting
3. Manually tube loading and unloading
4. Manually adjust the distance of knives
5.The center controlling part is adopted high performance PLC (programmable computer controller) . .
6.Equipped with text man-machine interface ,can put cutting value into touch screen directly and to oversee working condition.
7.Cutting system is individual drive, so can able to singleness set each knife’s feeding and cutting time
8. It is equipped with alloy steel blade so as to cutting smooth and beautiful.

Inner Diameter
50-152mm
Wall Thickness
3-15mm
Cutting Length
70 -1750mm
Parent Tube Length
1750mm
Blade Quantity
10 Groups
Cutting Speed
30 Branch Tube/Min
Loading/Discharging
Manual
Fix Tube Type
Clamping Automatically
Cutting Way
Pneumatic ,Cutting One by one knife
Operator
1 Worker
Dimension
2660*720*1200mm
Weight
800KGS
Voltage
380V, 3 Phase, 50HZ
PLC
TAIWAN DELTA
Main Motor
CHINA XINLING 3KW
Inverter
CHINA ZHENGXIAN 3.7KW
Touch Screen
CHINA XIANKONG
Signal Component
CHINA HUGONG
Pneumatic Component:
CHINA XINGCHEN
Electrical Equipment:
CHINA CHINT
Bearing
CHINA HAERBING
Spare Parts And Professional Tools
Allen Wrench:
1 piece
Open-End Wrench:
1 piece
Useful Tools:
1 set
Air Gun:
1 piece
Blade:
2 pieces
Three-Way Connection:
1 piece
Air Tube:
4 meters
Magnetic Valve
1 piece

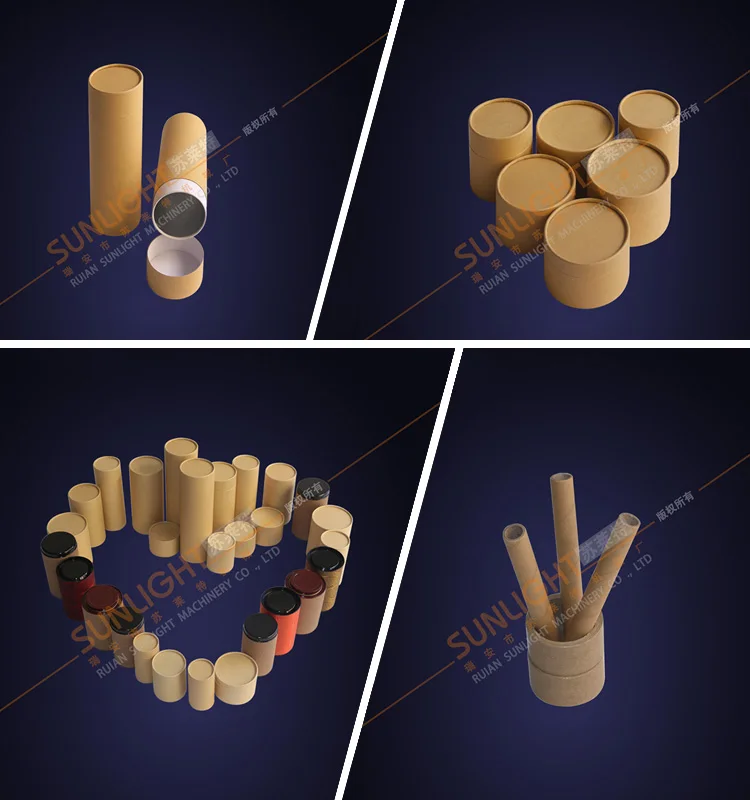

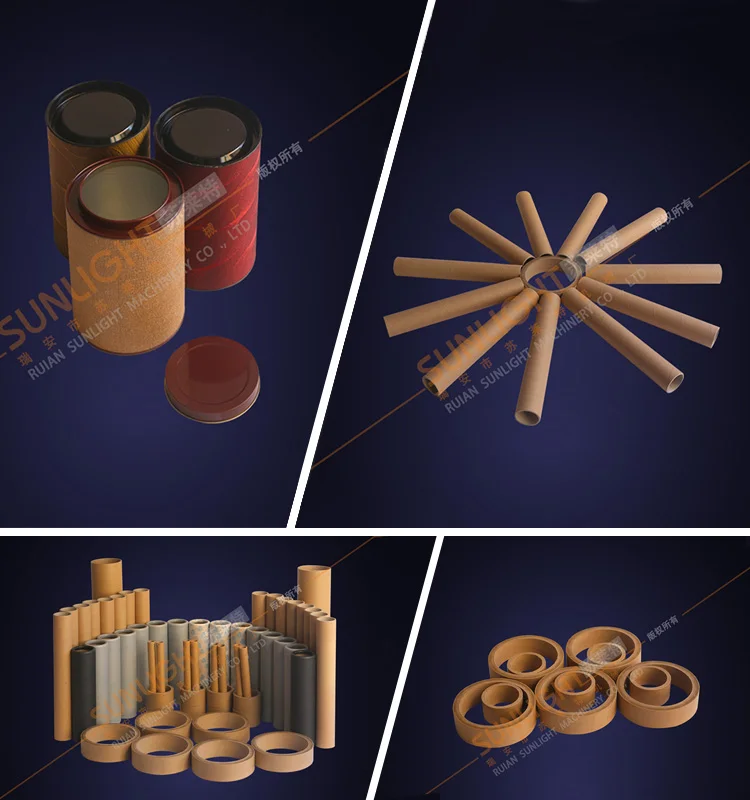

Detailed Images


Certifications

Paper Tube Machine

Slitting Machine

Film Blowing Machine


Our Company

SUNLIGHT Machinery Factory committed to provide the best solutions and share the most advanced products and technologies to our customers. The company has strong capabilities who with a modern production plant. It specializes in producing paper tube machine line , plastic and non-woven shoe cover making machines, various materials slitting machines, sleeve cover making machines, strip cap making machines, automobile steering wheel making machines, etc.,our machines are exported to Europe, North American, South America, Africa, Middle East, Southeast Asia and other countries and regions.

Management Teams

Unity: People oriented, establishing win-win situation with our clients.
Courtesy: Courtesy is regarded as the supreme guide principle in order to promoting company’s overall image.
Loyalty: Inspire staff’s centripetal force, establishing spiritual service teams.
Endeavour: Ceaselessly strengthen employees’ learning ability and promote the competitiveness of corporation.
Innovation: We improve our products as per the requirement of clients and market change.
Customers’ demand is what we are pursuing for. We sincerely hope that we can cooperate with you.


Stay Ahead of Others

We keep ahead of others in the world in all aspects of enterprise operation, including developing collective leadership art at all levels, productive management, products design, manufacture, support channel and financial performance, etc.


Integrity

Supreme morality is our principle, obligation is our honor.
We are responsible for our act, treating people with justice, integrity and respect.

Quality

We will do our best to improve products’ quality in order to meet the requirement of our clients, employees and the society.

Customer’s Satisfaction

Customer’s satisfaction is the cornerstone to success. We will thoroughly find out what it is that our clients demand, and meet clients’ requirement completely in order to make our clients satisfied.

Cooperation

We know that people will always be the source power of strength and competition advantage.
We will keep on learning and sharing new knowledge and new ideas and encouraging the cooperation between different levels and coverage.

Our Client

SUNLIGHT machinery Factory using the advanced technology, scientific management and the full range after-sales services system. Let’s “strengthen the quality of edge and speed up scientific and technological innovation” as the strategic position. Let’s “serves our customers, returning back to community” as responsibility, using modern enterprise system of scientific management. Continue to improve produce technology, strict to controlled the quality of the products and imports the advanced technological and scientific researching person to provide the products and services to our customers. We will sharing the scientific technological progress to our customers and bringing a sense of accomplishment and pride to enterprises!


Packing & Delivery
Testing And Packing

We testing every machine before shipment
The machine will be packed and shipped by container
It is ok by train or sea
The machine will be packed by film in standard
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing

Payment & Delivery

 We accept L/C, T/T(30% down payment, 70% before shipment).
Inform sea shipment charge advance.
A shipping notification with tracking number will be inform you once your order shipped.
Pls note that we are not responsible for any customs duty incurred at foreign customs.
30-35days after payment/deposit, subject to the machine

Machine Installation


For clients who purchase our machines for the first time, we will assign engineers to buyer’s factory, within appointed time, to install the machines and train the operators for buyer. Engineer’s wages and transportation expenses from our factory to the domestic airport is on our account.

During installation period, clients should offer accommodation, round-trip tickets, visa expenses for our engineers. Eight hours working time per day.
Clients who need second maintenance and training should pay salary for each of our engineers. Additionally, round-trip tickets, accommodation, visa expenses is on client’s account.

Warranty :


1.Warranty Time:12 months;
2. The company regards clients as gods. A replacement can be made after the confirmation made by our relevant department when accessories breakdown under the condition of right use within warranty period. The company develops archive for every single machine that is made. Serial numbers are marked on each machine part and archived. It’s pretty convenient for our clients to change spare parts when necessary. The only thing you need to do is to provide us the serial numbers on the spare parts, which need to be replaced. Moreover, we provide one year warranty after sale. We offer free spare parts within the warranty time, except damages caused by human factors and irresistible external factors.
3. If buyers damaged any parts of the machine without abiding by the using condition, using environment and usage that the instruction manual demanded within warranty time, we will only provide paid services under this circumstances.
4. There will be an operation training for operator:
(1) Training for right operation;
(2) Training for common sense of daily maintenance;
(3) Introducing after-sale services and training for solutions;
(4) Introducing after-sale services and notify the contact way; Accessories supply guarantee: We supply free accessories within one year warranty period. We will charge you for accessories supply when the warranty is overdue;
5. We offer 24 hours after-sale consulting services nationwide on hotline;
6. Video solution of equipment emergency failure. User themselves need to equip video system and devices. Our technicians will analyze the problems through video and guide clients’ technician to solve the problem all together.

Our Services

Service:

Service and technical support, including easily wearing parts supplying, online malfunction solution, installation and adjustment, employee training for buyers, software upgrading, products manual, malfunction maintenance, and other respects that buyers concern. e.g.
1.What kind of pre-services do you offer? E.g. Whether or not do you provide samples? Is the samples free or not? Which party pays the freight?
Answer: We will make samples by our machine for customers as soon as possible without any charge based on the samples clients offered and a video will be recorded for your reference. The sample material should be provided by customers, freight is on customers’ account. The made sample will be sent free.
2.What kind of in-sale services do you provide? E.g. What is the supplying way of easily wearing parts? What is the delivery cycle (begins from the order)?
Answer: Accessories damaged within warranty period, we will offer free replacement as per quality guarantee terms and conditions. Generally, the delivery time of the products is within 45 working days after the contract is signed.
3.How about the after-sale services? How long is the warranty time? What kind of services do you offer within the warranty period?
Answer: We provide one year free warranty and long-term training (the first time is free, but we will charge you for the second time and the training after that). We will provide free replacement according to the serial numbers when the accessories damaged within the guarantee period.
4.Do you have any special services? E.g. Services like design, customize, installation, training, etc.
Answer: Other services including initial free training, fee-based training afterwards and other technical support, etc.
