SLT-SG Automatic Label Jumbo Kraft Paper BOPP Plastic Film Roll Cutter Slitter Rewinder Cutting Slitting Rewinding Machine

FOB Reference Price:Get Latest Price
US $6,200-85,000 / Sets | 1 Set/Sets 300m Per Min Cigarette Paper Slitting And Rewinding Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Slitting Rewinder
Computerized:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SUNLIGHT
Model Number:
SLT-SG
Voltage:
380V,3PHASE,50HZ, 380V, 3PHASE ,50HZ ,Or According Client Requirement
Power(W):
27KW
Dimension(L*W*H):
4000x4400x2100
Weight:
4000KGS
Certification:
CE
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Slitting Type:
Knife slit
Material:
Film , Paper , Foil
Function:
Converter
Control System:
PLC
Motor Control:
Inverter
Cutting System:
Circle Knife or straight knife
Speed:
0-400m/min
Tension control:
Frequency motor
Operator:
1 person
SupplyAbility
SupplyAbility:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
The machine will be packed by film in standard
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing
Port
NINGBO
Lead Time :
25 Days after receive your deposit
Product Description


Use:
This machine are suitable for stripping of reel-shape materials such as BOPP, PET, PE, PVC , Aluminum foil , reel paper and so on
Feature :
Main Motor: electromagnetic speed regulation motor
Separated General Control Cabinet, more flexible and even easier operation.
Automatic EPC for unwinding, photocell is suitable for tracking the edge and the line of material.
Equipped with air shaft for unwinding material loading, magnetic powder brake
for unwinding tension control
Air shaft for rewinding, Magnetic powder clutch for rewinding tension control
Equipped with air trim discharge conveying system.
Automatic meter counting device.

Model
SLT-SG700
SLT-SG1100
SLT-SG1300
Max. Width of Mother Roll
700mm
1100mm
1300mm
Max. Diameter of Mother Roll
600mm
600mm
600mm
Width of Final Roll
40~700mm
40~1100mm
40~1300mm
Max. Diameter of Rewinding
600mm
600mm
600mm
Slitting and Rewinding Speed
160m/min
160m/min
160m/min
Precision of EPC
±0.5mm
±0.5mm
±0.5mm
Total Power
5kw
5.5Kw
7.5Kw
Overall Dimension(L×W×H mm)
2400×1800×1500
2400×2200×1500
2400×2400×1500
Weigh t o f Machine
1500kg
2000kg
2500kg

SLT-SG Automatic Label Jumbo Kraft Paper BOPP Plastic Film Roll Cutter Slitter Rewinder Cutting Slitting Rewinding Machine

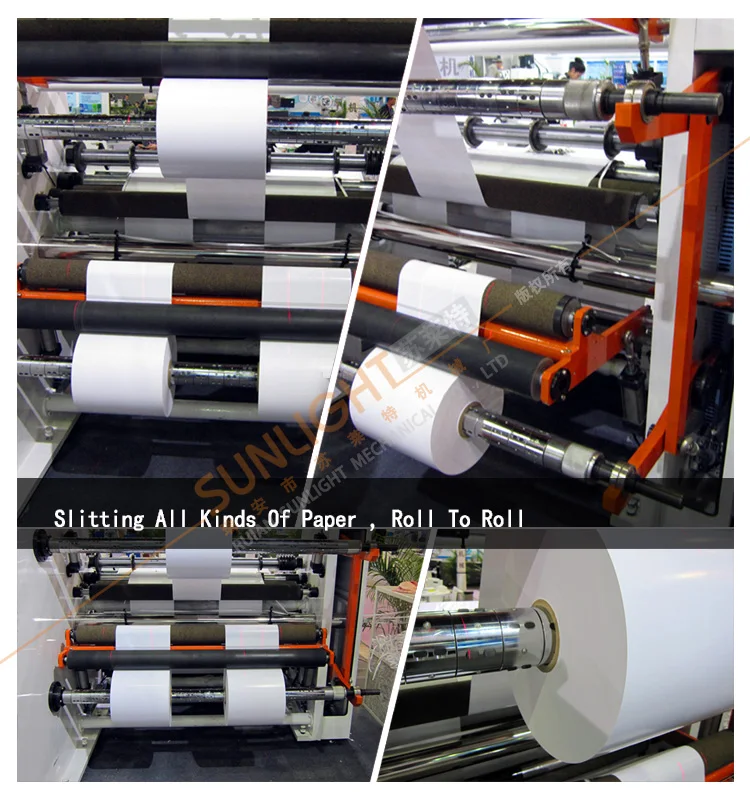

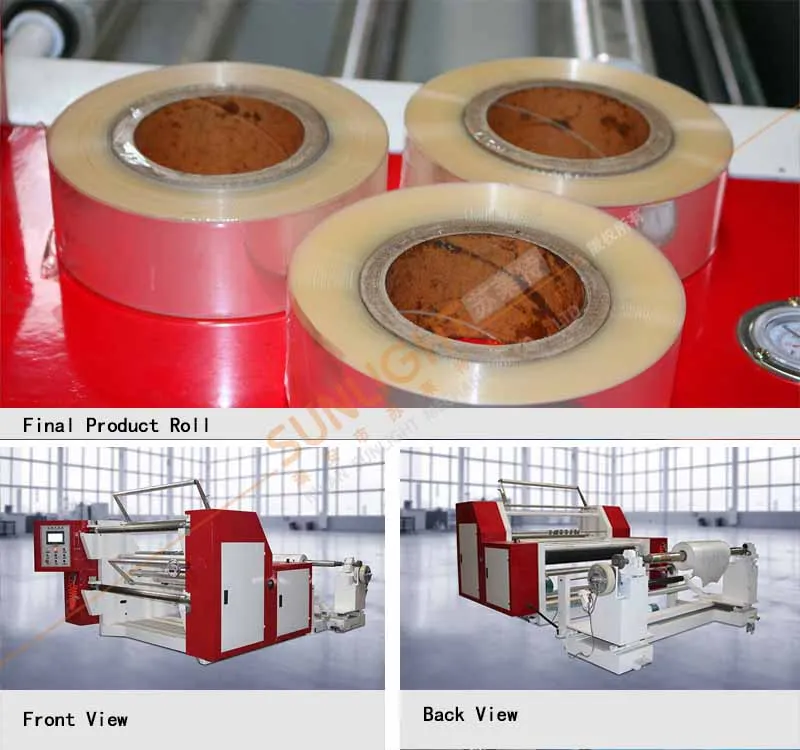

Detailed Images

SLT-SG Automatic Label Jumbo Kraft Paper BOPP Plastic Film Roll Cutter Slitter Rewinder Cutting Slitting Rewinding Machine

Certifications

Paper Tube Machine

Slitting Machine

Film Blowing Machine

SLT-SG Automatic Label Jumbo Kraft Paper BOPP Plastic Film Roll Cutter Slitter Rewinder Cutting Slitting Rewinding Machine

Our Company

SUNLIGHT Machinery Factory committed to provide the best solutions and share the most advanced products and technologies to our customers. The company has strong capabilities who with a modern production plant. It specializes in producing paper tube machine line , plastic and non-woven shoe cover making machines, various materials slitting machines, sleeve cover making machines, strip cap making machines, automobile steering wheel making machines, etc.,our machines are exported to Europe, North American, South America, Africa, Middle East, Southeast Asia and other countries and regions.

SLT-SG Automatic Label Jumbo Kraft Paper BOPP Plastic Film Roll Cutter Slitter Rewinder Cutting Slitting Rewinding Machine

Our Client

SUNLIGHT machinery Factory using the advanced technology, scientific management and the full range after-sales services system. Let’s “strengthen the quality of edge and speed up scientific and technological innovation” as the strategic position. Let’s “serves our customers, returning back to community” as responsibility, using modern enterprise system of scientific management. Continue to improve produce technology, strict to controlled the quality of the products and imports the advanced technological and scientific researching person to provide the products and services to our customers. We will sharing the scientific technological progress to our customers and bringing a sense of accomplishment and pride to enterprises!

SLT-SG Automatic Label Jumbo Kraft Paper BOPP Plastic Film Roll Cutter Slitter Rewinder Cutting Slitting Rewinding Machine

Packing & Delivery
Testing And Packing

We testing every machine before shipment
The machine will be packed and shipped by container
It is ok by train or sea
The machine will be packed by film in standard
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing

Payment & Delivery

 We accept L/C, T/T(30% down payment, 70% before shipment).
Inform sea shipment charge advance.
A shipping notification with tracking number will be inform you once your order shipped.
Pls note that we are not responsible for any customs duty incurred at foreign customs.
30-35days after payment/deposit, subject to the machine

SLT-SG Automatic Label Jumbo Kraft Paper BOPP Plastic Film Roll Cutter Slitter Rewinder Cutting Slitting Rewinding Machine

Our Services

Service:

1.R&D team: gathered professional electrical engineer team, development any machine you fit your requirement.
2.Raw material inspection: All material test high quality, then keep in warehouse
3.Workers: All workers training 3 months, skilled workers on produce line.
4.Quality Control: We have strict quality control system Incoming Quality Control, Final quality control, Out-going quality control

SLT-SG Automatic Label Jumbo Kraft Paper BOPP Plastic Film Roll Cutter Slitter Rewinder Cutting Slitting Rewinding Machine
