Quick Details

  • Condition: New
  • Product Type: Paper Core Machine
  • Processing Type: Winding Machine
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SUNLIGHT
  • Model Number: SL-SB
  • Voltage: 380V
  • Power(W): 15KW
  • Dimension(L*W*H): 3450X1100X1500mm
  • Weight: 3000KG
  • Certification: CE
  • Warranty: One YEAR
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Winding Type: Spiral
  • Usgae: Paper core
  • Control: Inveter control motor
  • PLC: Siemens
  • Cutting Knife: 8 sets Knife Online
  • Winding Head: 2 head
  • Cutting Length: Sensor Control
  • Structure: Steel
  • Steel: 14mm
  • Glue Tank: 12 Layer

Packaging & Delivery

Packaging Details Tube Making Machine will be packed by film in standard
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing
Delivery Time Shipped in 30 days after payment
Product Description

Feature :

1. Adopt microcomputer set in-line cut length, more accurately; Touch screen convenient for data adjusting;

2. Adopt human-machine operation interface, more convenient for operation;

3. Paper reeling stand , Slitting rolls are easily placed into reel stand by electric lifting device;

4.Choose Single or double glue coating unit

5. Spiral winding part , Hanging-type operation panel, specialized operation system , Belt tension device (hand-wheel driven)

6. Multi-knife System in-line cutting unit controlled by encoder .,cutting final paper tube directly


Inner Tube Diameter
25-100mm
Paper Reel
3-12 Plies
Thickness
1-5mm
Spiral Speed
0-30m/Min
Hub Wheel
Two head and single belt
Way Of Fixing Mandrel
Flange

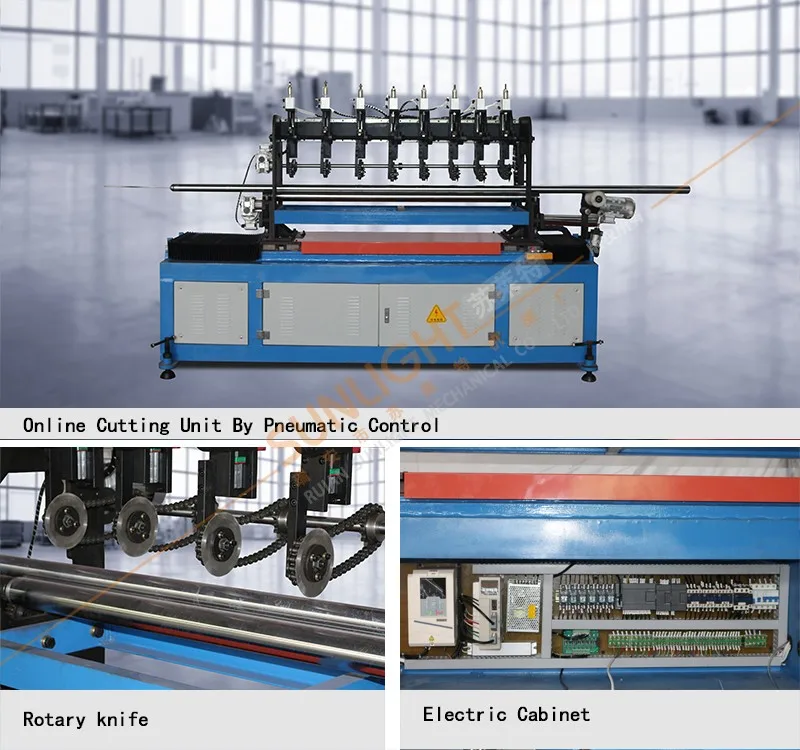

Cutting System
8 blade cutting system , numerical control
Synchronous Tracking Cutting
Servo motor control
Cutting Length
70mm-1380mm
Way Of Gluing
Double Side
Cutting Length
Encode control
Operator
2-3 person
Speed Control
Inverter control
Dimension
Main Winding Part
5600*1600*1750mm
Machine Layout Size
11000mm * 8500mm*2900mm
Weight
3200KGS
Drive System
Main Motor
CHINA XINLING 7.5KW
Rotated Speed
1400r/Min
Rotated Speed Of Hub Wheel
48r/Min
Output Strength
1000N.M
Gear Box
WPDO155
Driving Chain
16A*2
Control System
PLC
TAIWAN DELTA
Touch Screen
CHINA XIANKONG
Inverter
CHINA ZHENGXIAN 11KW
Signal Component
CHINA HUGONG
Pneumatic Component:
CHINA XINGCHEN
Electrical Equipment:
CHINA CHINT
Bearing
CHINA HAERBING
Servo Motor
CHINA DONGYUAN 2KW
Lead Screw And Sliding Block
TAIWAN ABBA
Main Parts
Paper Reel Stand
12 Plies Integral Paper Reel Stand

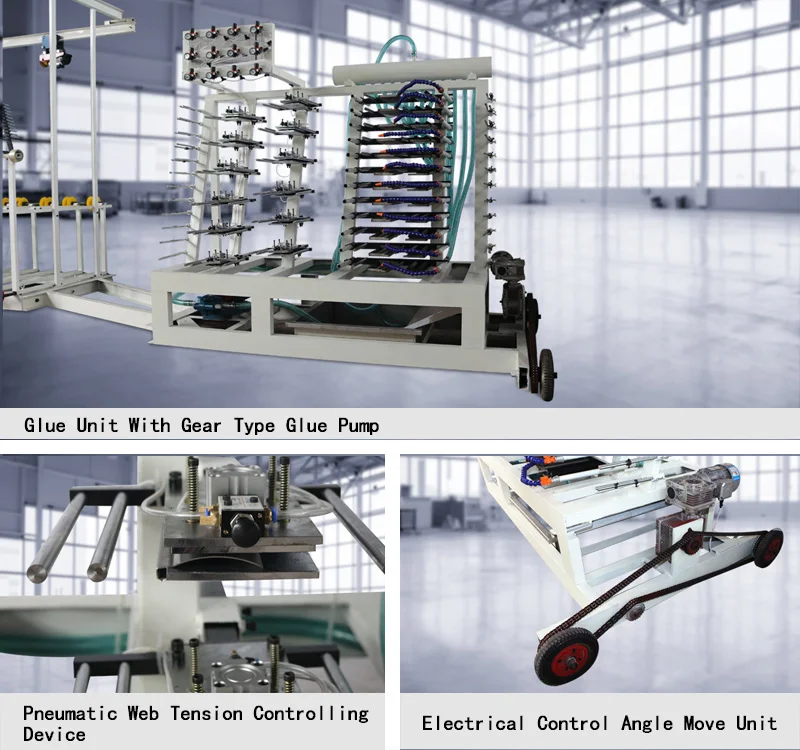

Gluing Unit
12 plies Immersion Glue Loading Machine with pneumatic tension control

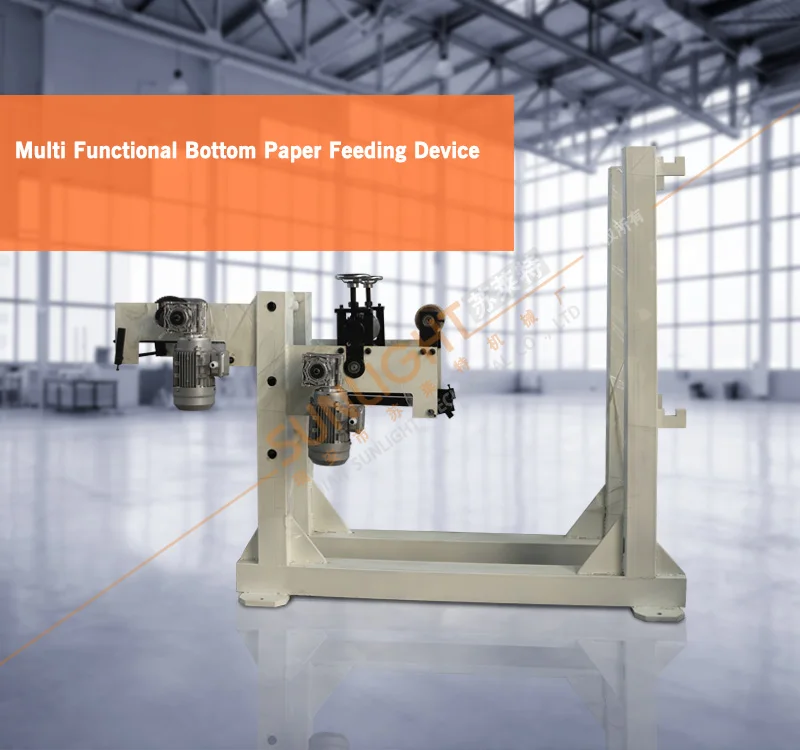

Double Motor Control Paper Bottom Feeding Unit
1 set
Surface Paper Feeding Unit
1 set
Mandrel And Belt
2 sets (The size according the client requirement)
Belt Adjustment
Manual
Angle Adjustment For Reel Stand And Glue Tank
Manual (optional : Motor adjustment)
Glue System
Independent Glue Box/Polyurethane Scraping Blade , 1.5kw Pump
Lubricating Oil
Automatic Giving
Spare Parts And Professional Tools
Allen Wrench:
1 piece
Open-End Wrench:
1 piece
Useful Tools:
1 set
Air Gun:
1 piece
Blade:
5 pieces
Three-Way Connection:
1 piece
Air Tube:
8 meters
Limit Switch:
1 piece


Detailed Images
